WAC Recessed Lighting Guide
1. Define the Application
2. Select the Type of Recessed Fixture
3. Determine Size and Aperture
4. Choose Your Housing Type
5. Match the Trim Style
6. Lighting Performance Specs
7.Dimming and Control Compatibility
8. Energy Codes & Compliance
9. Installation & Maintenance
10.Popular WAC Recessed Series
11.Warranty & Support
Loading...
Ceiling Lights
Wall Lights
Outdoor
Undercabinet
Fans
Brands
Sale

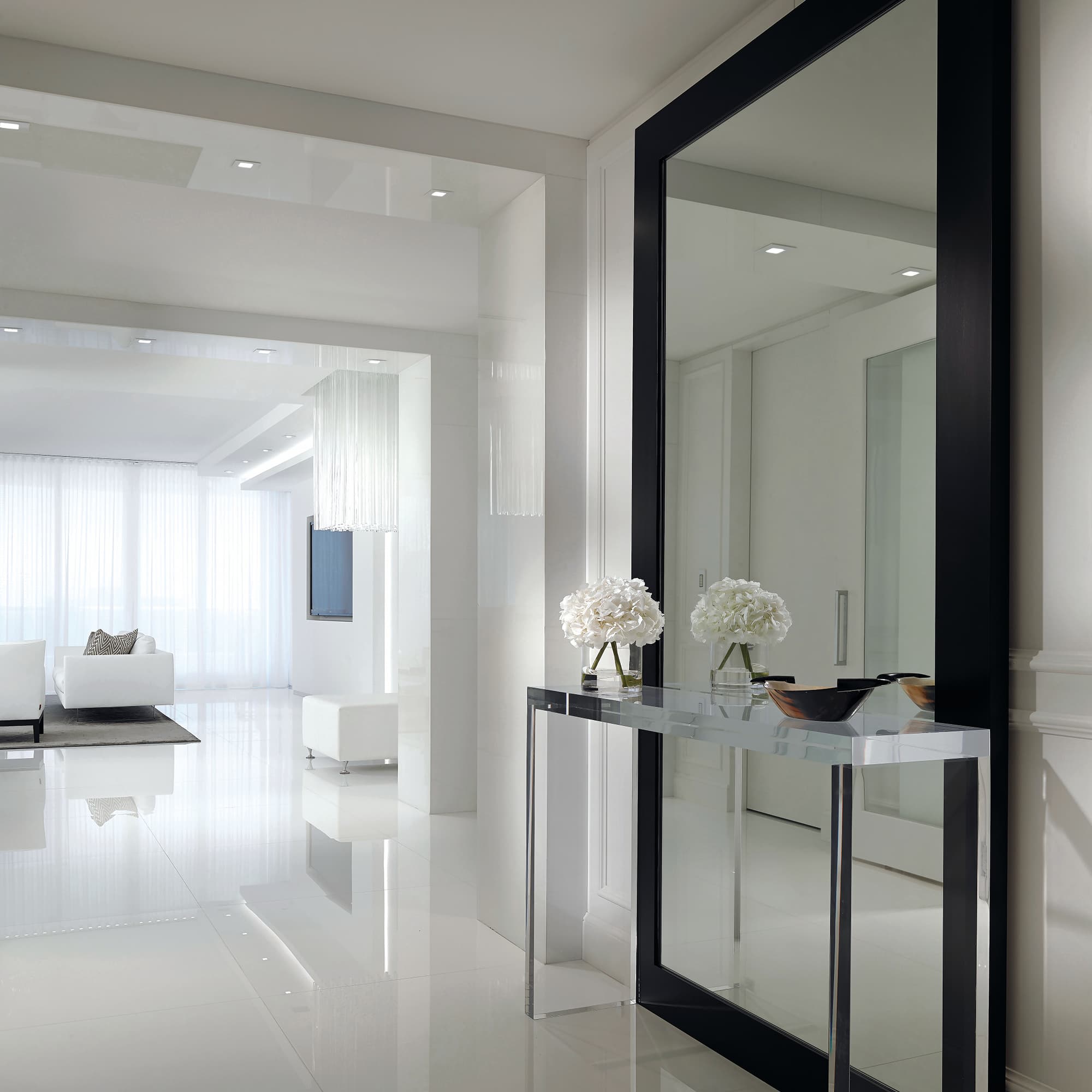

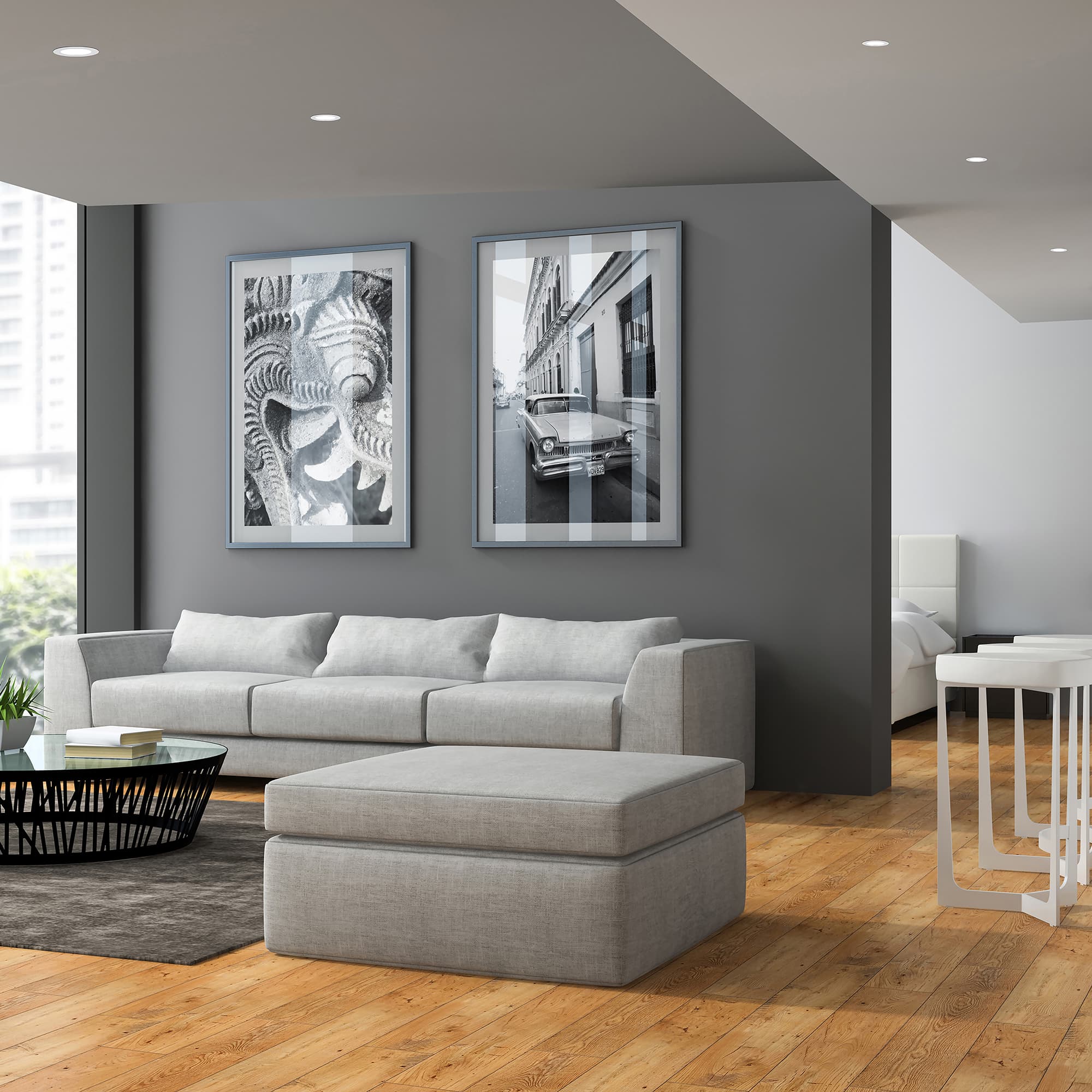

Residential Spaces: Kitchens, living rooms, bathrooms, hallways.
Commercial Projects: Offices, retail, hospitality, corridors, and lobbies.
Specialty Areas: Sloped ceilings, wet locations, or architectural accents.
Downlights: General illumination with fixed or adjustable trims.
Adjustable Gimbals & Elbows: Aimable for accent or task lighting (great for highlighting art or retail displays).
Wall Wash Fixtures: Designed to evenly illuminate vertical surfaces without scalloping.
Shallow Housings: Ideal for tight plenum spaces and remodel applications.
Invisible Trim Options (e.g., FQ, Ocularc): Seamless integration for modern architectural finishes.
2" – 3.5": Sleek, minimal appearance; ideal for modern homes and retail.
4" – 6": Traditional residential and commercial applications.
Micro Apertures (Miniature): Discrete lighting with high-performance output for luxury environments.
New Construction Housings: For open ceiling installs before drywall.
Remodel Housings: For retrofit installations into existing ceilings.
IC-Rated: Safe for direct contact with insulation.
Non-IC Rated: Requires clearance from insulation.
Airtight: Helps maintain HVAC efficiency; often Title 24 compliant.
Baffle Trim: Reduces glare with ribbed interior – great for living spaces.
Reflector Trim: Maximizes light output; suited for commercial or high-ceiling spaces.
Square or Round Apertures: Match architectural preferences.
Trimless/Invisible Trim: Clean, drywall-flush finish (high-end installations).
Color Temperature (CCT):
2700K: Warm, residential feel.
3000K–3500K: Balanced, modern white.
4000K–5000K: Bright, neutral or task-oriented.
Color Rendering Index (CRI):
CRI 90+ is standard on most WAC recessed fixtures – ideal for accurate color representation.
Lumen Output: Ranges from 500 lm to 3000+ lm depending on fixture size and application.
Beam Angles: Narrow, flood, or wide beam options depending on use case.
Driver Options:
TRIAC/ELV (phase cut): Common in residential installs.
0–10V or DALI: Commercial-grade controls and integration with lighting systems.
Smart Dimming & Controls: Some lines support integration with automation platforms.
Title 24 / JA8 Compliant Fixtures: Required for California and other energy-regulated states.
Damp/Wet Location Ratings: Select models rated for bathrooms, exterior soffits, or shower installs.
ENERGY STAR & DLC Options: Available for qualified rebates or energy-efficient builds.
Tool-Free Adjustments: Many WAC systems allow easy field aiming or driver access.
Field-Changeable Optics and Trims: Some series allow lens, beam, or finish swaps post-install.
Low-Profile Drivers: Fit into shallow or complex ceiling types.
Long lifespan: with Replaceable LED engines
Volta & Aether Series: Architectural-grade; modular with field-interchangeable optics and trims.
Ocularc & FQ: Sleek, minimalist aesthetics with top-tier performance.
Limited & Lotos: Entry level without compromising on performance.
5-Year Warranty standard on most architectural LED fixtures.
2-Year Warranty product finish
Support for Layout Design: WAC provides photometrics and technical drawings on WAC Lighting.
Custom Solutions: Finish colors, trim styles, or beam spreads can often be customized for large projects.
