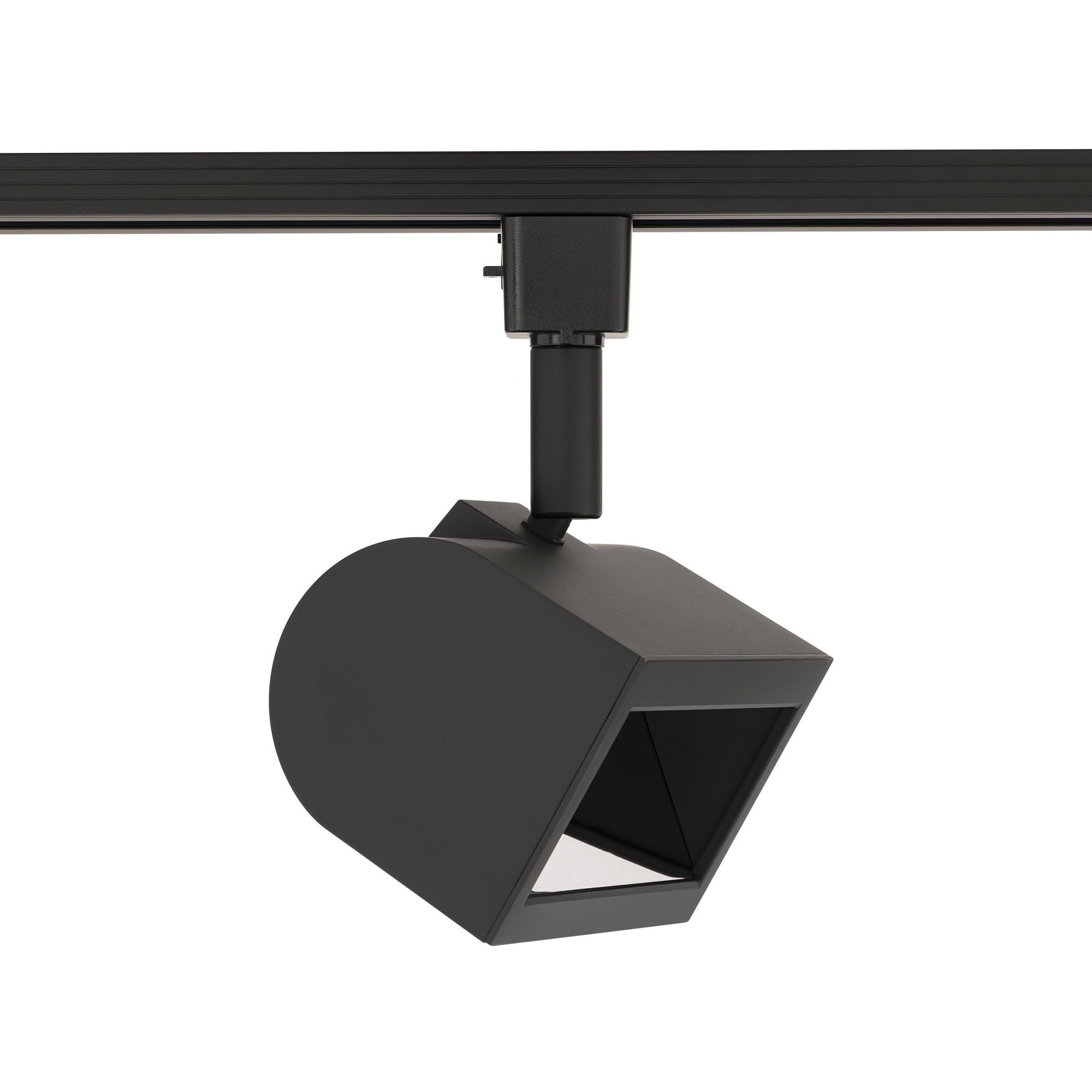

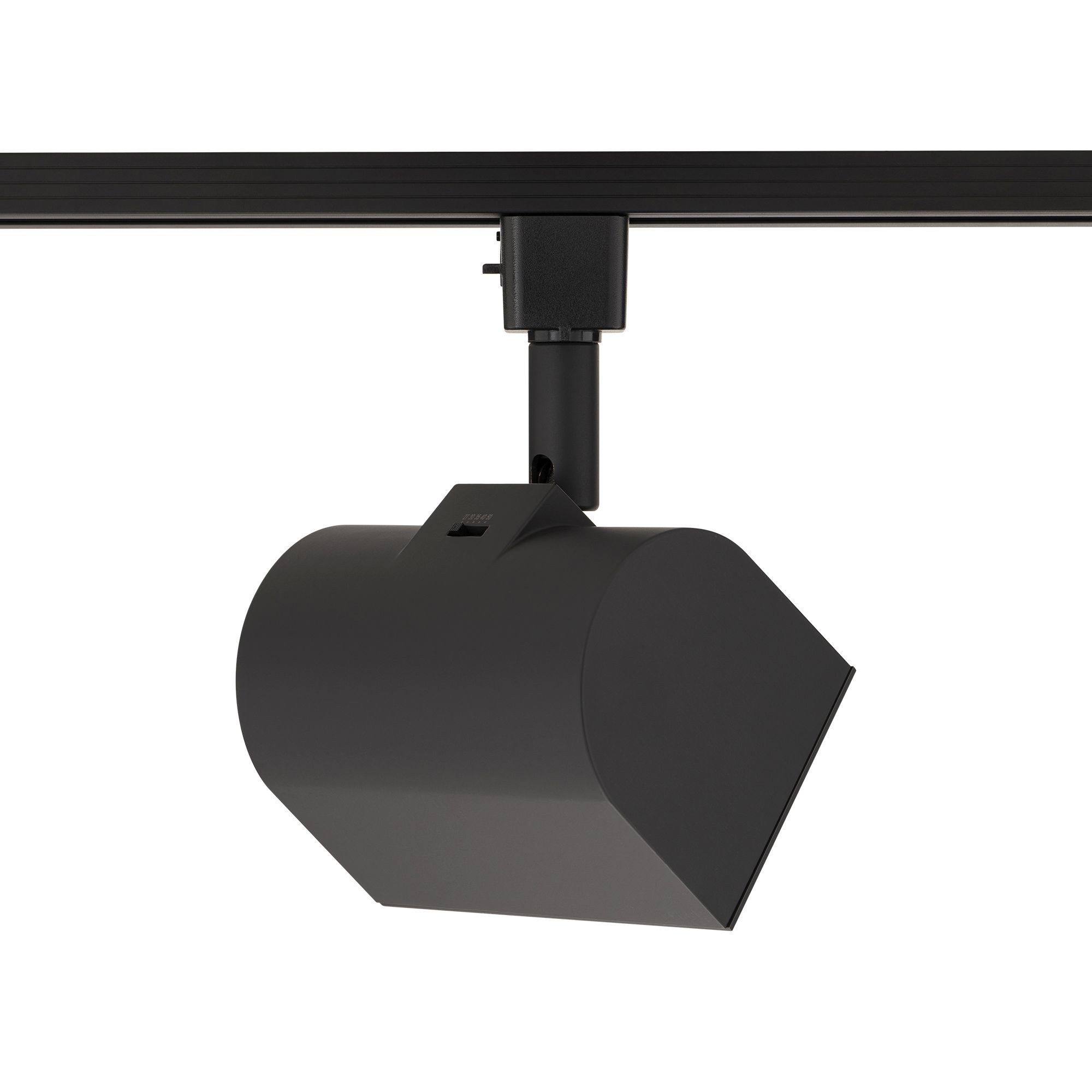

Ideal for residential spaces and lower-mounted commercial installations, the OCULARC 3020W-CS provides an asymmetrical optical distribution suited to wall wash applications. Constructed from die-cast aluminum, the fixtures offer a 350-degree horizontal rotation and 90-degree vertical tilt for precision aiming. Engineered with integral 5CCT selectable LEDs and driver, it produces a high output asymmetric distribution in 90CRI. Available in monopoint or H, J/J2, and L track configurations.

Durable Construction:

• Die-cast aluminum construction in a simple form and clean design.

High Powered Performance:

• For use with 120V track.
• High Powered 5CCT LED module (No Lamp Required)

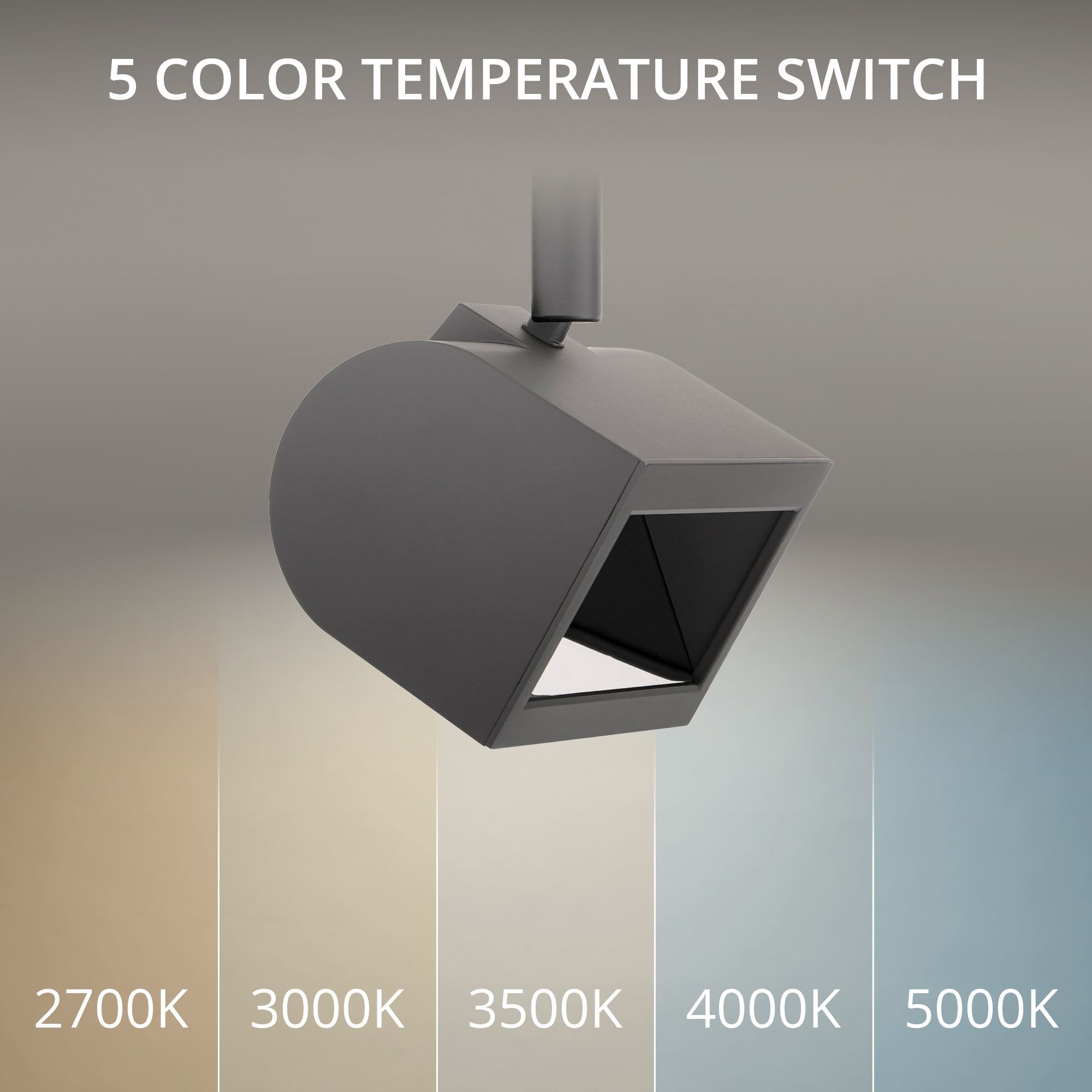

• Color Temp: 2700K/3000K/3500K/4000K/5000K CRI: 90
• Rated Hours: 50,000 up to 1150 Lumens
• LED Power: 22W

Highly Configurable:

• Track Fixture is available in H, J/J2, and L track configurations.
• economical performance luminaire with integral 5-CCT LED and driver.
• Asymmetrical beam distribution for even wall illumination.
• Smooth and continuous dimming to 10% with TRIAC or Electronic Low Voltage (ELV) dimmer.
• Install 3 to 5 feet from wall and 3 to 5 feet on center for optimal effect.

Ratings/Certifications/Warranty:

• Standards: ETL & cETL Listed for Dry Locations.
