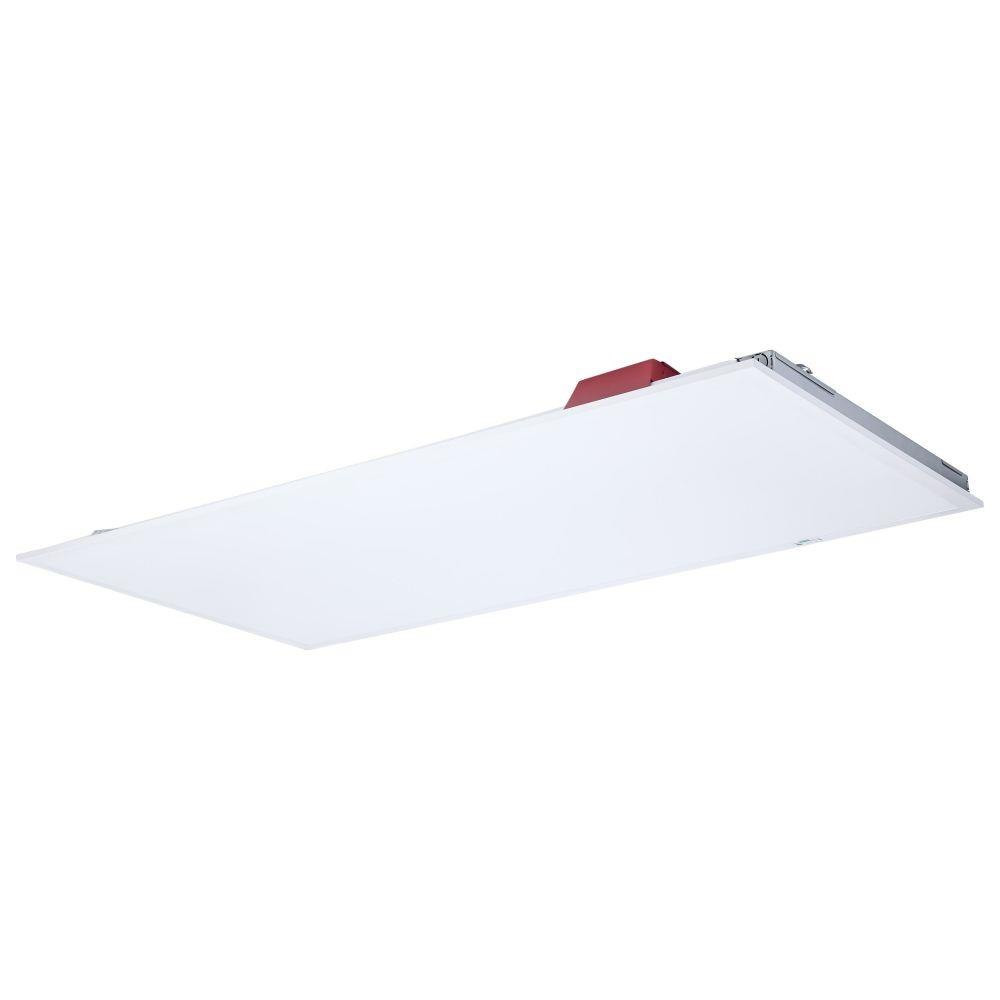

SATCO NUVO Backlit Panels deliver reliable performance with the flexibility to suit a wide range of applications. Available in six standard and six emergency models, these panels come in 1x4, 2x2, and 2x4 sizes, with universal voltage operation at 120–277V or 120–347V. Each fixture offers CCT selectability (3500K/4000K/5000K) to accommodate project needs. Built with a steel body and a solid die-cast aluminum trim, the panels feature seamless corners with no light leakage, while the polystyrene lens provides uniform illumination. Designed with 0–10V dimming to 10%, they are rated for damp locations with an IP20 designation. Emergency models include a 90-minute runtime with an integrated red battery backup and indicator light for added safety. DLC listed, 50,000-hour rated, and backed by a 5-year warranty, these fixtures are built for efficiency, durability, and lasting value.

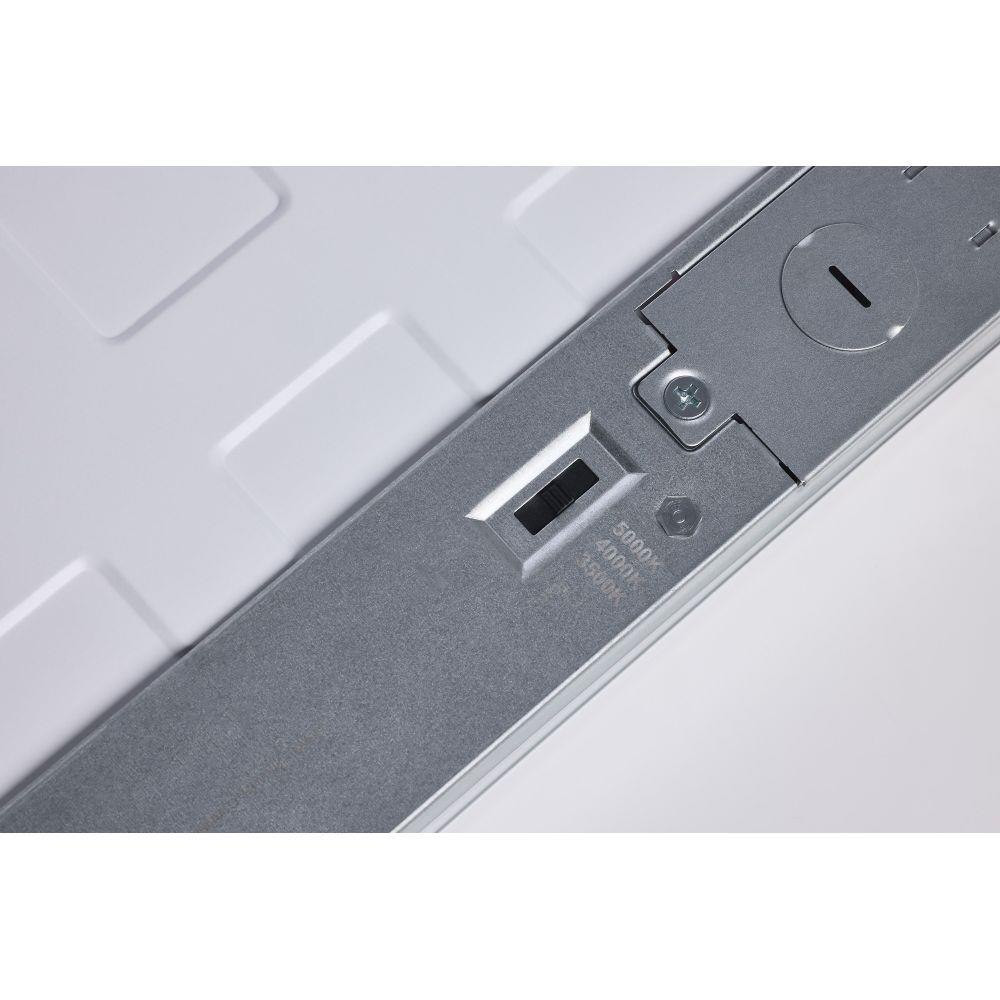

• Field Selectable - 3 CCT and 3 Wattage
• 2X4 Panel
• Emergency Battery Backup Model
• 120-277 Voltage
• Steel Body with Die-cast Aluminum Trim for Seamless Corners
• TAA Compliant
• Damp Location Rated
• 5 Year Warranty
• 50,000 Hour Functional Life

SATCO NUVO Backlit Panels deliver reliable performance with the flexibility to suit a wide range of applications. Available in six standard and six emergency models, these panels come in 1x4, 2x2, and 2x4 sizes, with universal voltage operation at 120–277V or 120–347V. Each fixture offers CCT selectability (3500K/4000K/5000K) to accommodate project needs. Built with a steel body and a solid die-cast aluminum trim, the panels feature seamless corners with no light leakage, while the polystyrene lens provides uniform illumination. Designed with 0–10V dimming to 10%, they are rated for damp locations with an IP20 designation. Emergency models include a 90-minute runtime with an integrated red battery backup and indicator light for added safety. DLC listed, 50,000-hour rated, and backed by a 5-year warranty, these fixtures are built for efficiency, durability, and lasting value.

• Field Selectable - 3 CCT and 3 Wattage
• 2X4 Panel
• Emergency Battery Backup Model
• 120-277 Voltage
• Steel Body with Die-cast Aluminum Trim for Seamless Corners
• TAA Compliant
• Damp Location Rated
• 5 Year Warranty
• 50,000 Hour Functional Life
