WAC undercabinet LED linear strip lights are deal for kitchen undercabinet lighting applications with plug & play feature easy to order and install. This low-profile luminaire is just 1/2" inch tall and 1/2" wide while delivering over 200 lumens per foot. For a clean architectural look, join the strips end-to-end seamlessly. Low Voltage Class 2 electronic transformer designed to be used as a plug-and play style transformer. Contains a 72" cord with an quick connect. Inherently protected and power limited, protecting the lighting system from both normal and abnormal short circuits. Built-in auto reset, soft start, short and overload circuit protection features. The soft start delayed start feature extends lamp life by delaying the abrupt inrush current to the lamp. Ideal for WAC Lighting Undercabinet systems.

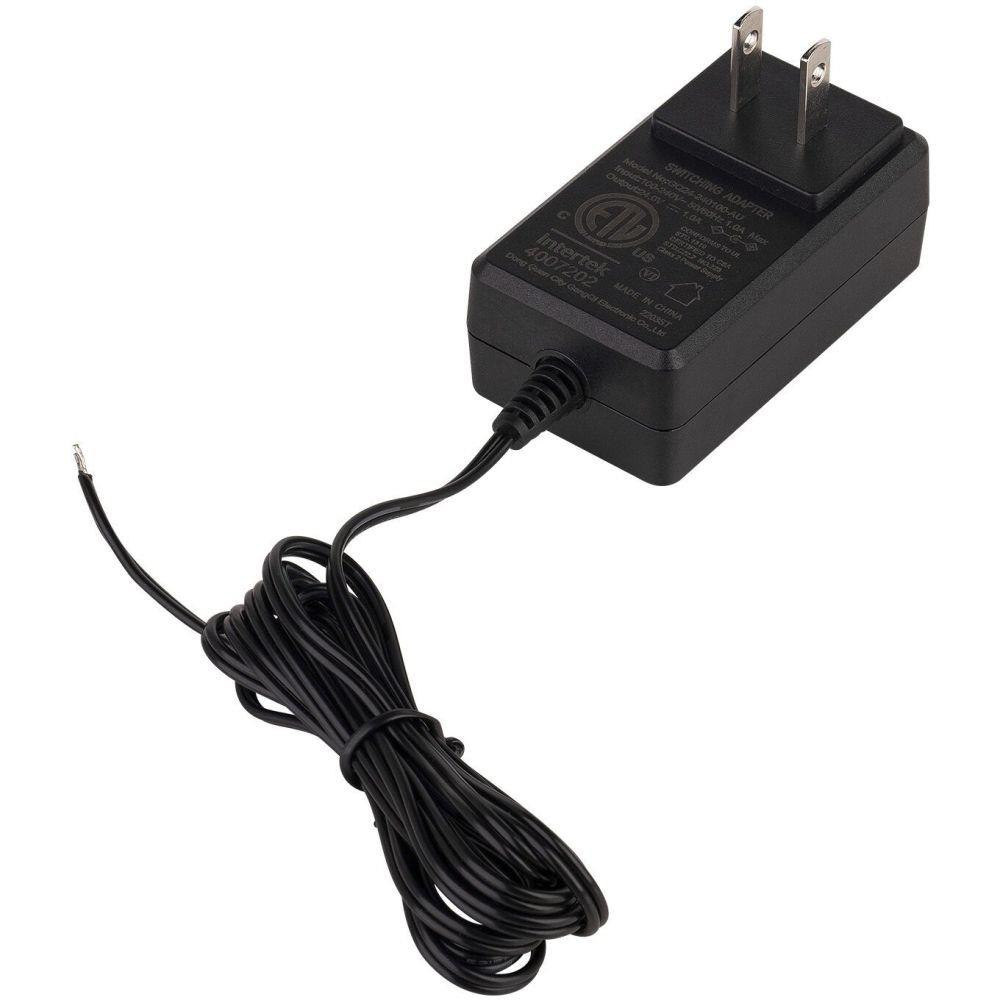

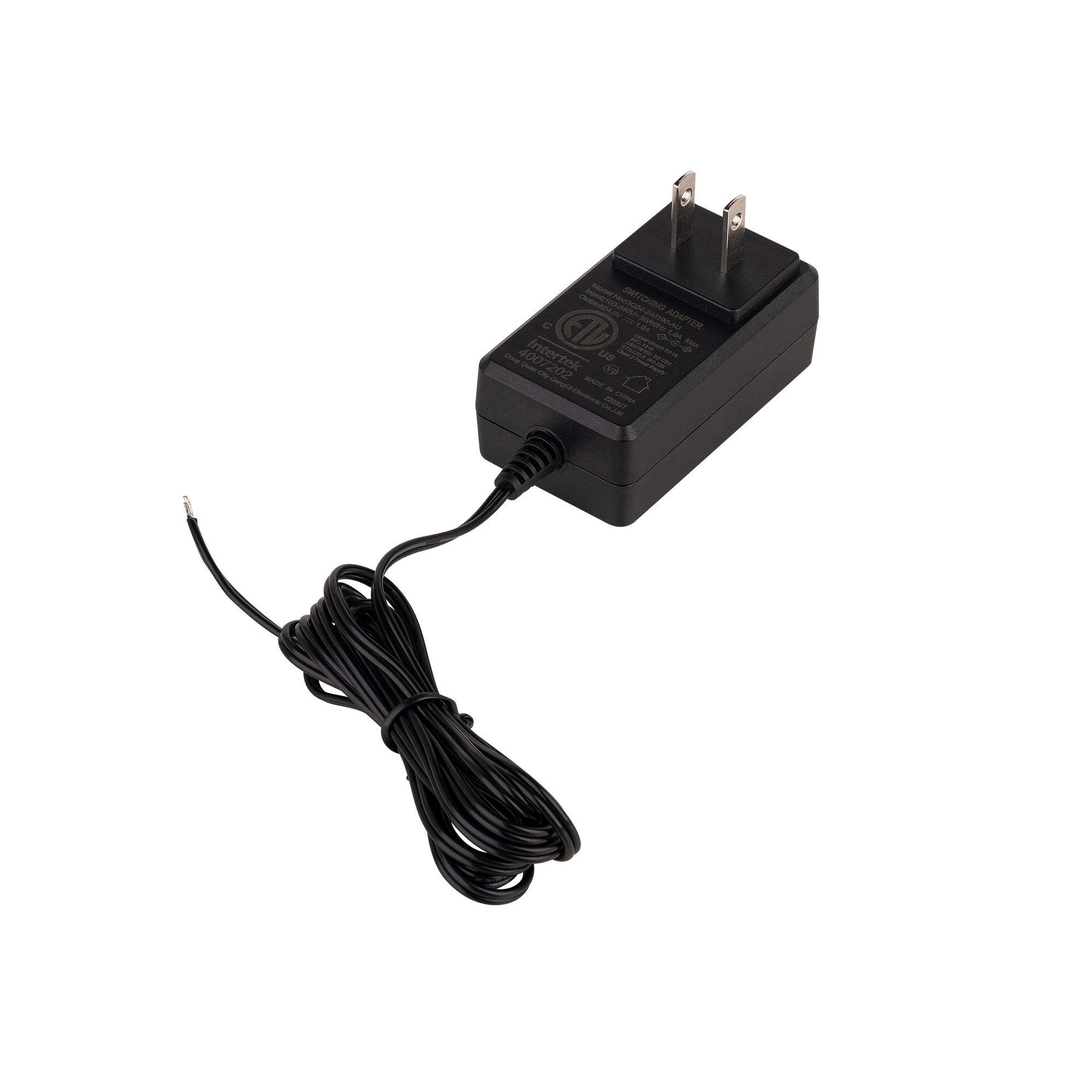

• CONSTRUCTION: WAC undercabinet LED linear strip light power supplies are offered in Plug-In (Part # LU-2420D-P) or Remote hardwired (Part # LU-24DC0), order accordingly.
• INSTALLATION: Plug-in version can be installed on a 120V receptacle, remote version has 5 electrical knockouts and housing for electrical connections.
• FEATURES: Plug-in version is available in 20W and 60W sizes, and Remote hardwired version is available in 60W and 96W versions. 18FT max run on 96W power supply, 12FT max run on 60W power supply, and 4FT max run on 20W power supply.
• DIMMING: Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC (standard LED/CFL) dimmer; Dims down 10% with a dimmer.
• SPECIFICATIONS: Plug-in version is 120V input, 12VDC output max load 20W or 60W. Remote version is universal input voltage 120V-277V, 12VDC output with max load 60W or 96W.
• STANDARDS: ETL, cETL UL # 2108 listed IP44 for Dry or Damp interior locations.
